General
- Operating Pressure Range: 1.00 to 2.00 ATA (adjustable in 0.01 ATA increments)

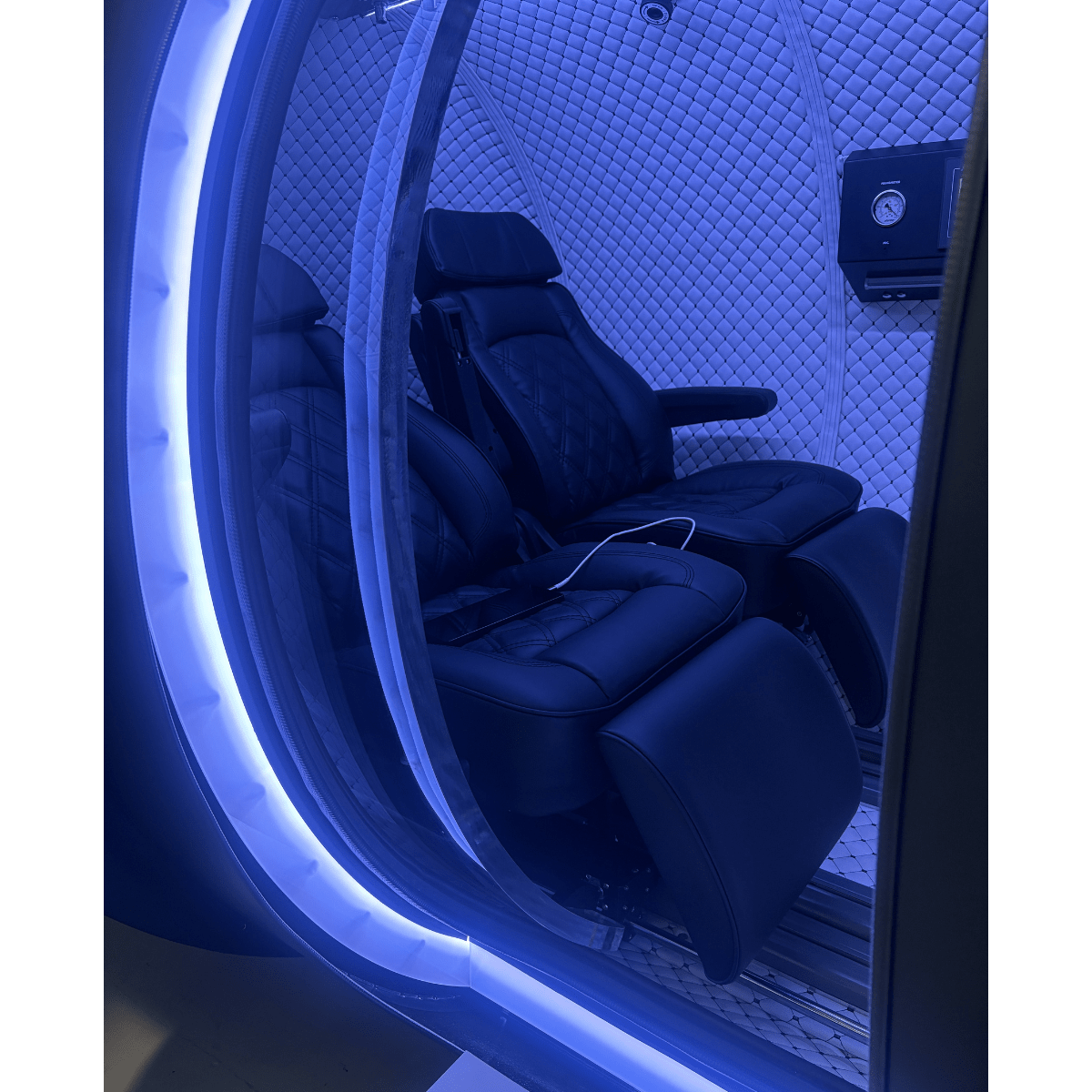

- Capacity: Standard for 2 users, expandable up to 4–6 persons via modular ring additions

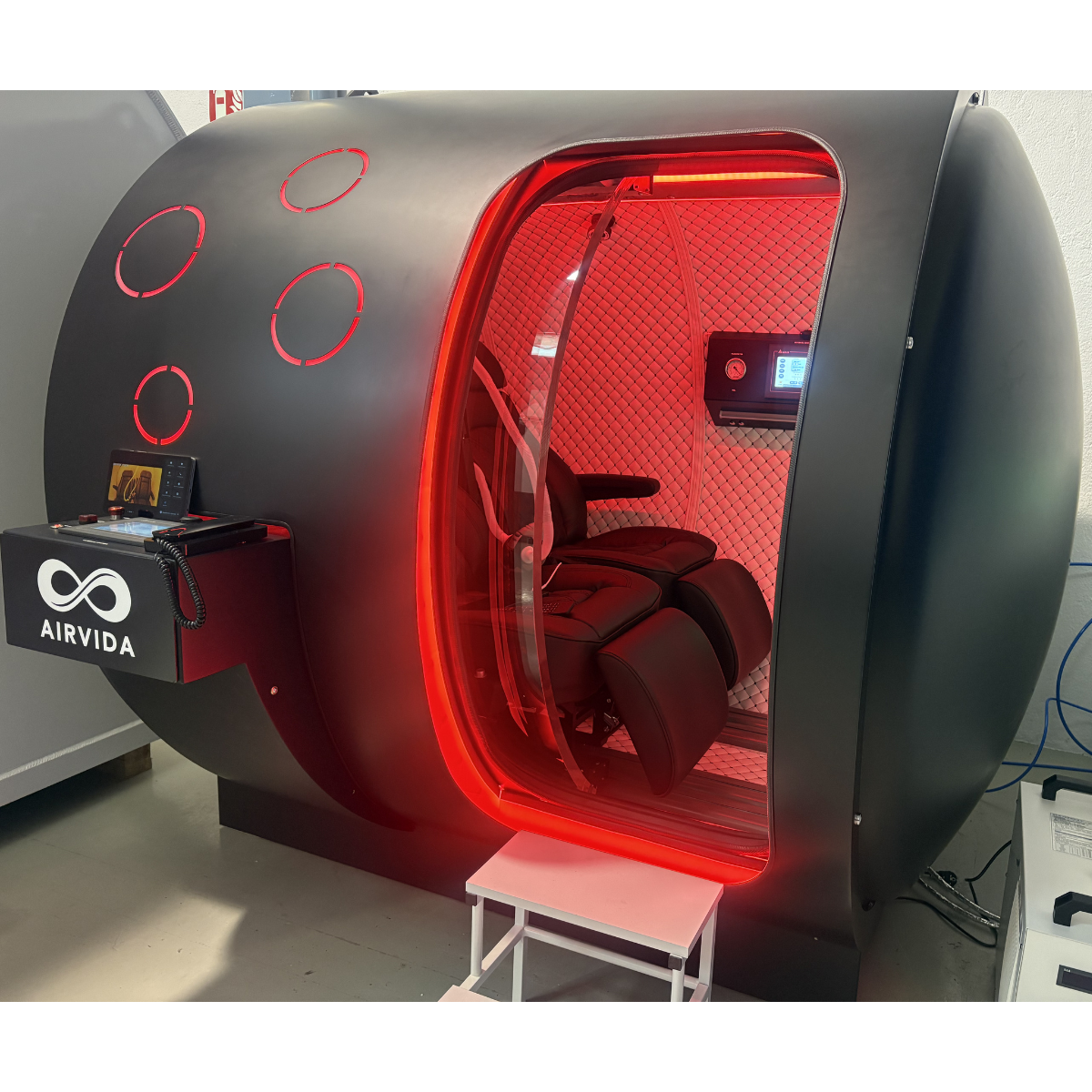

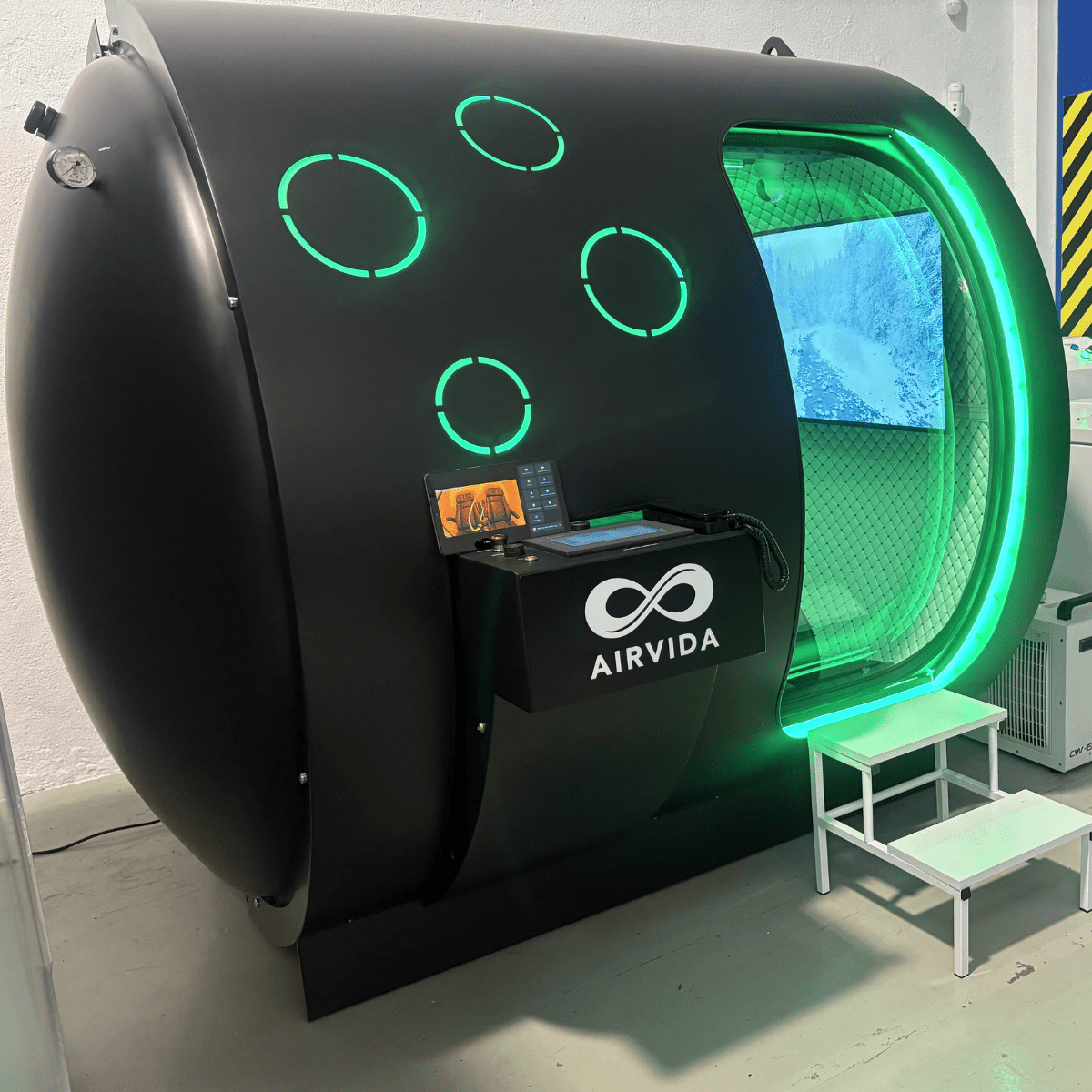

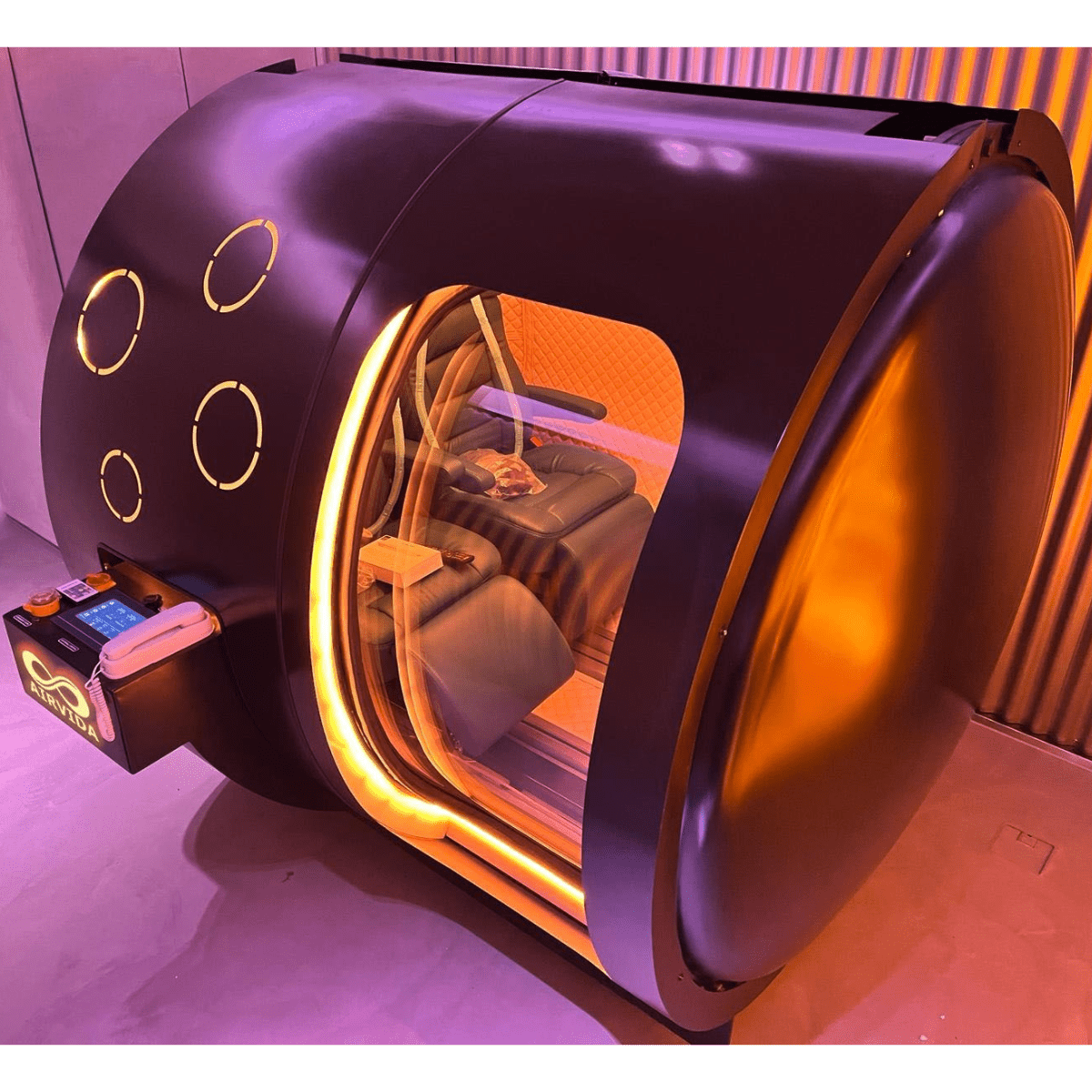

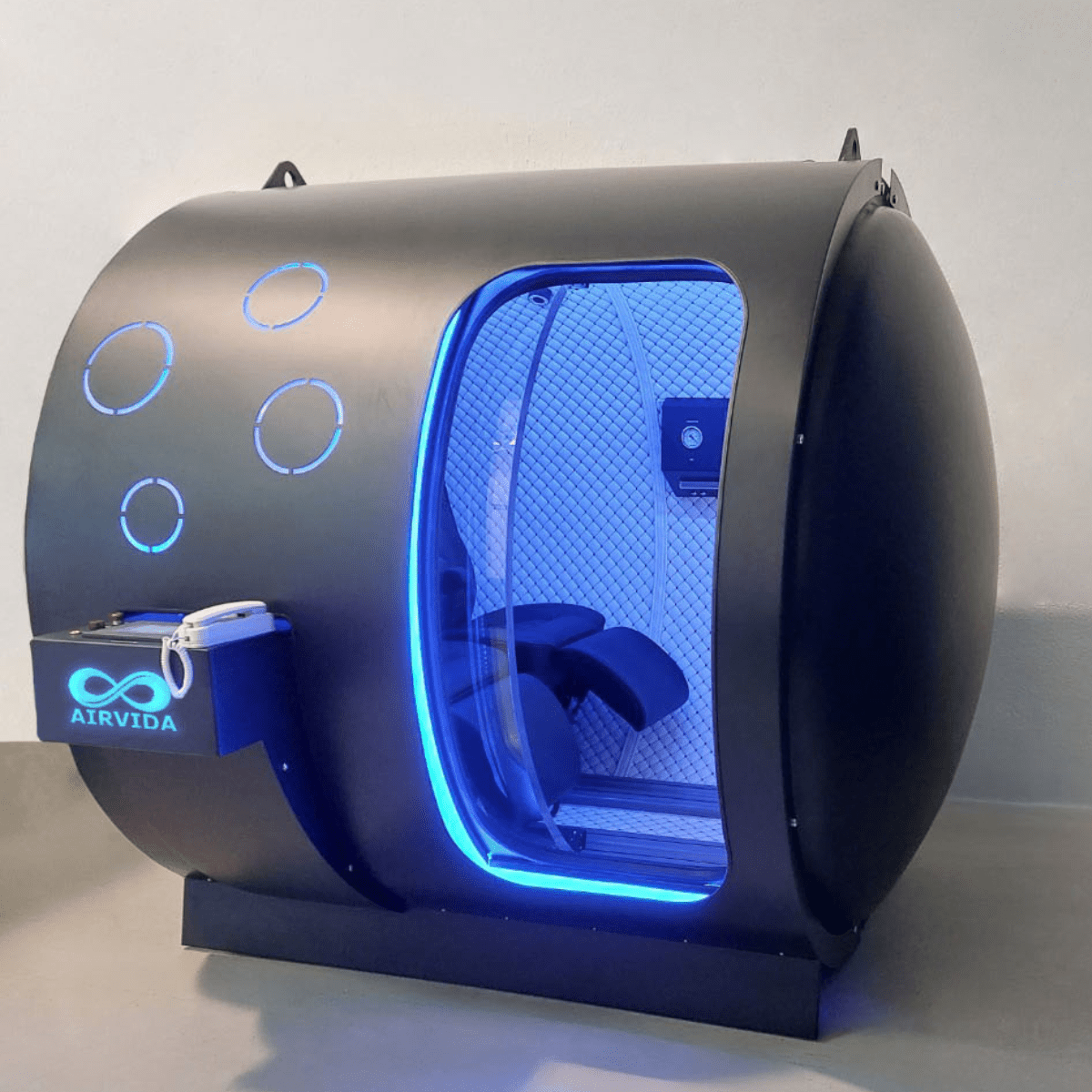

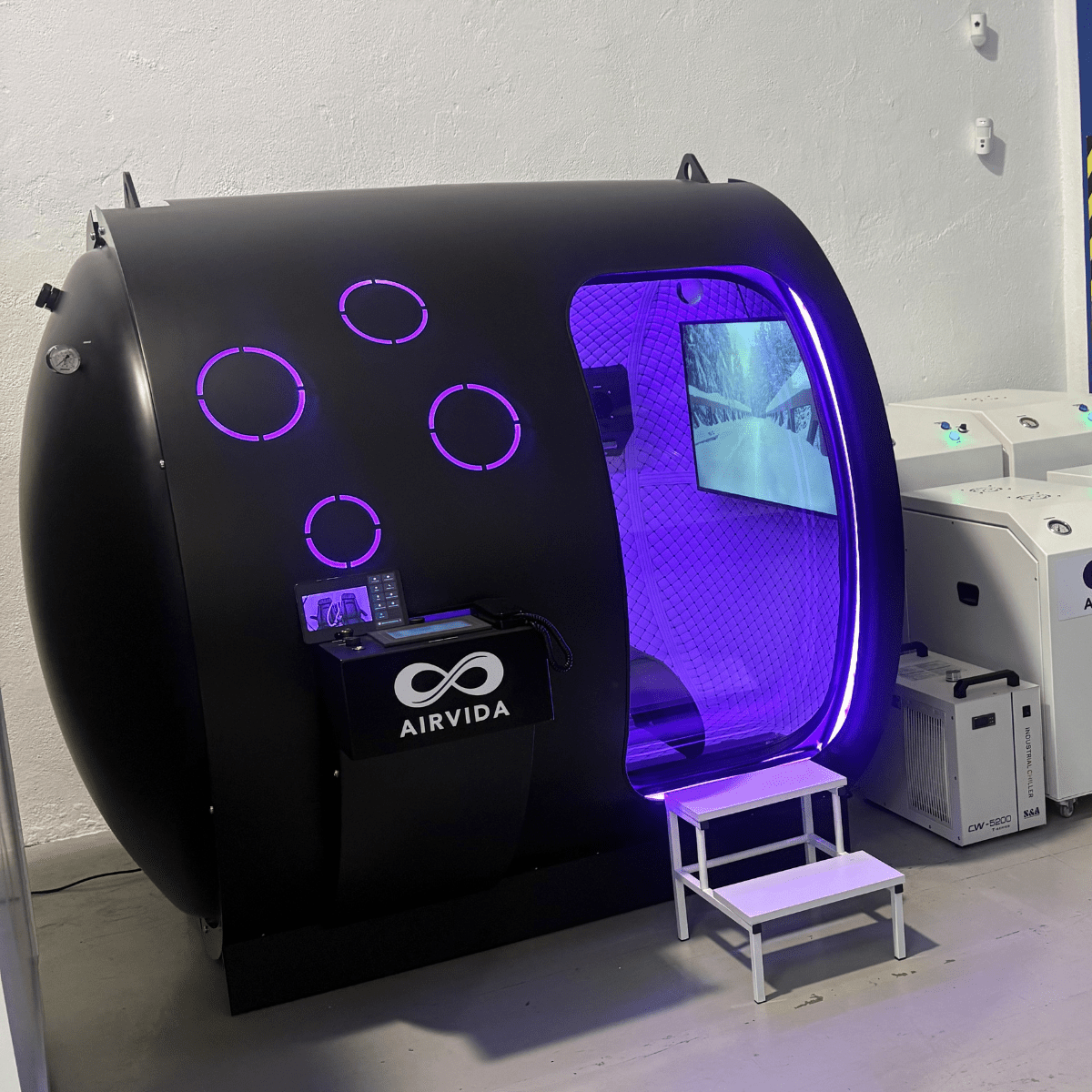

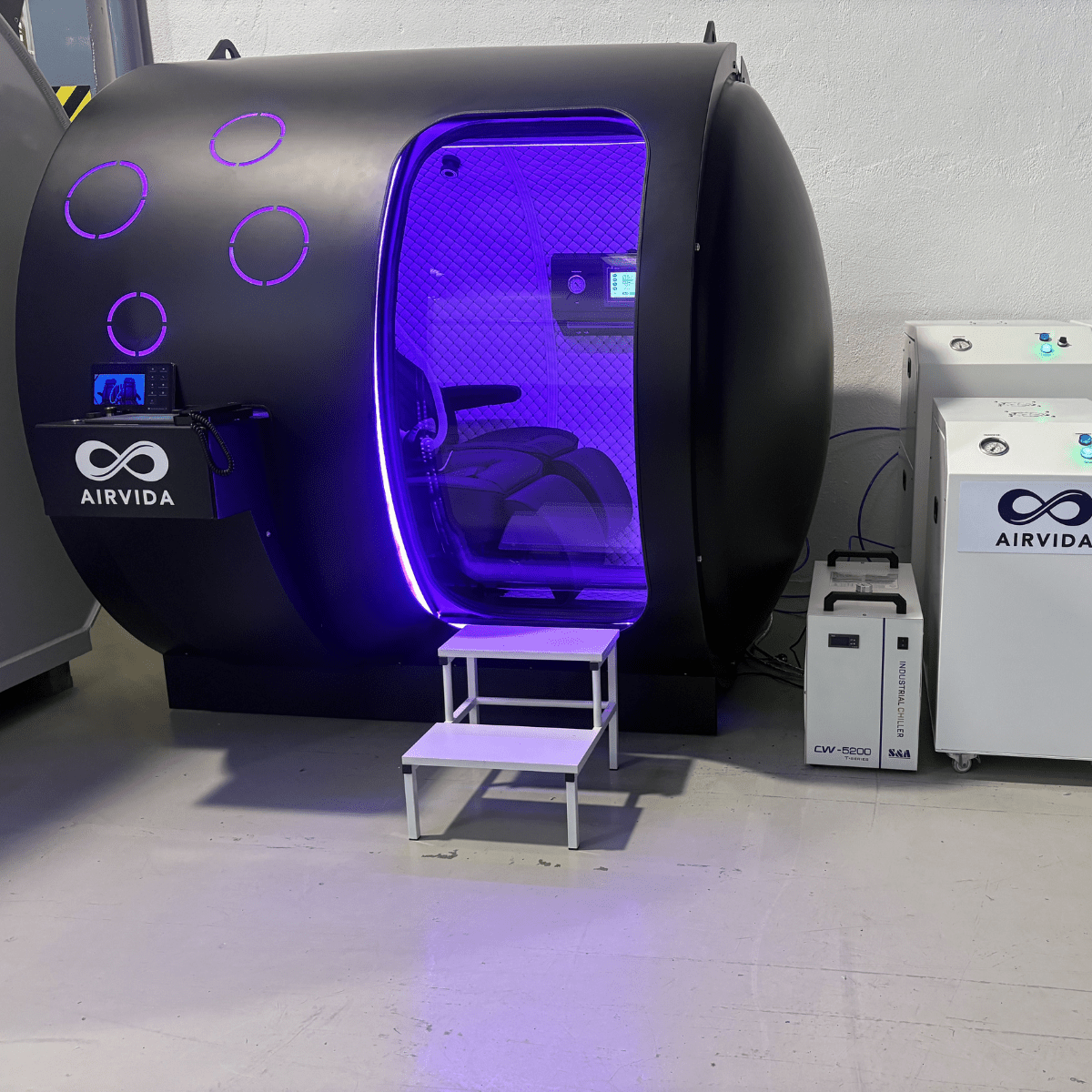

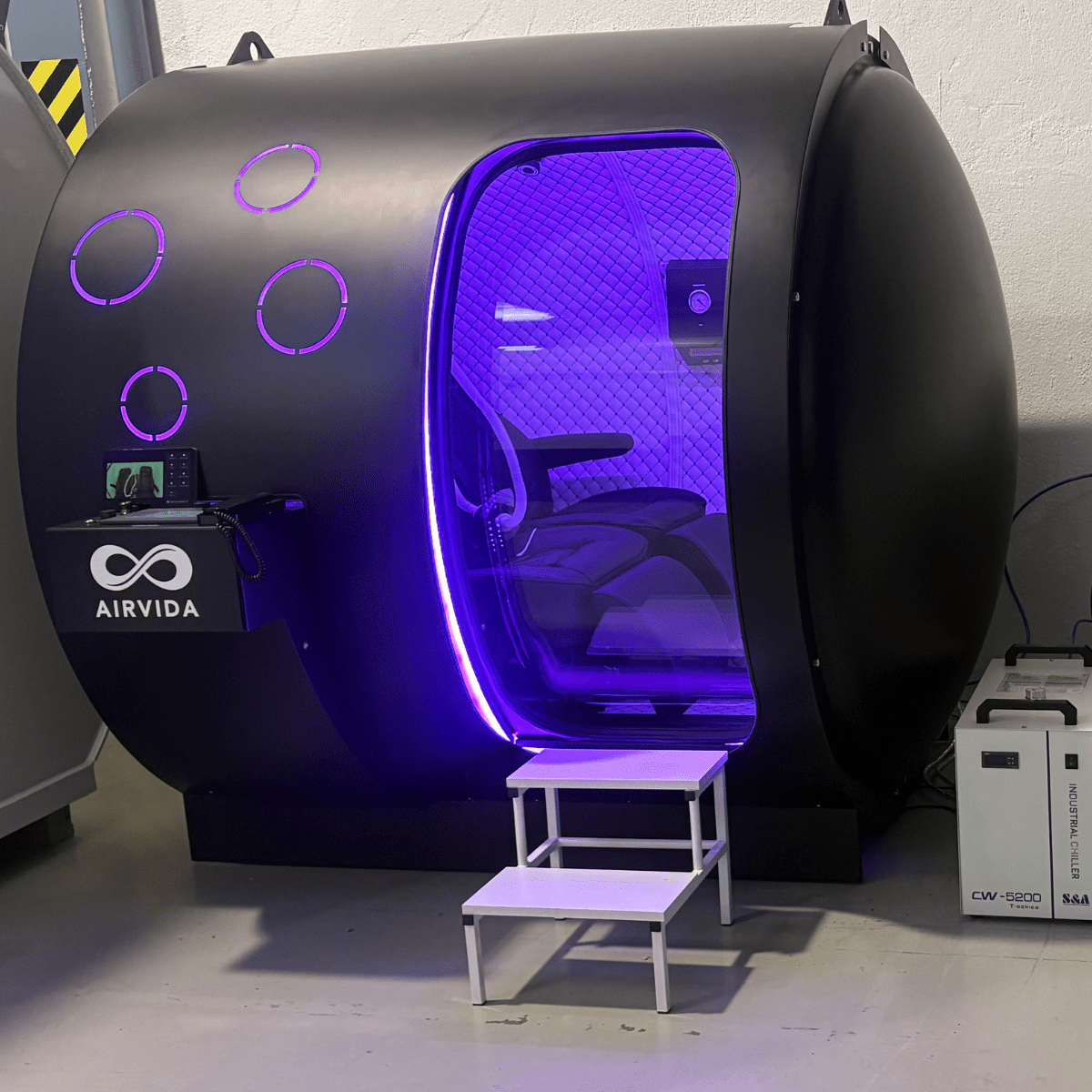

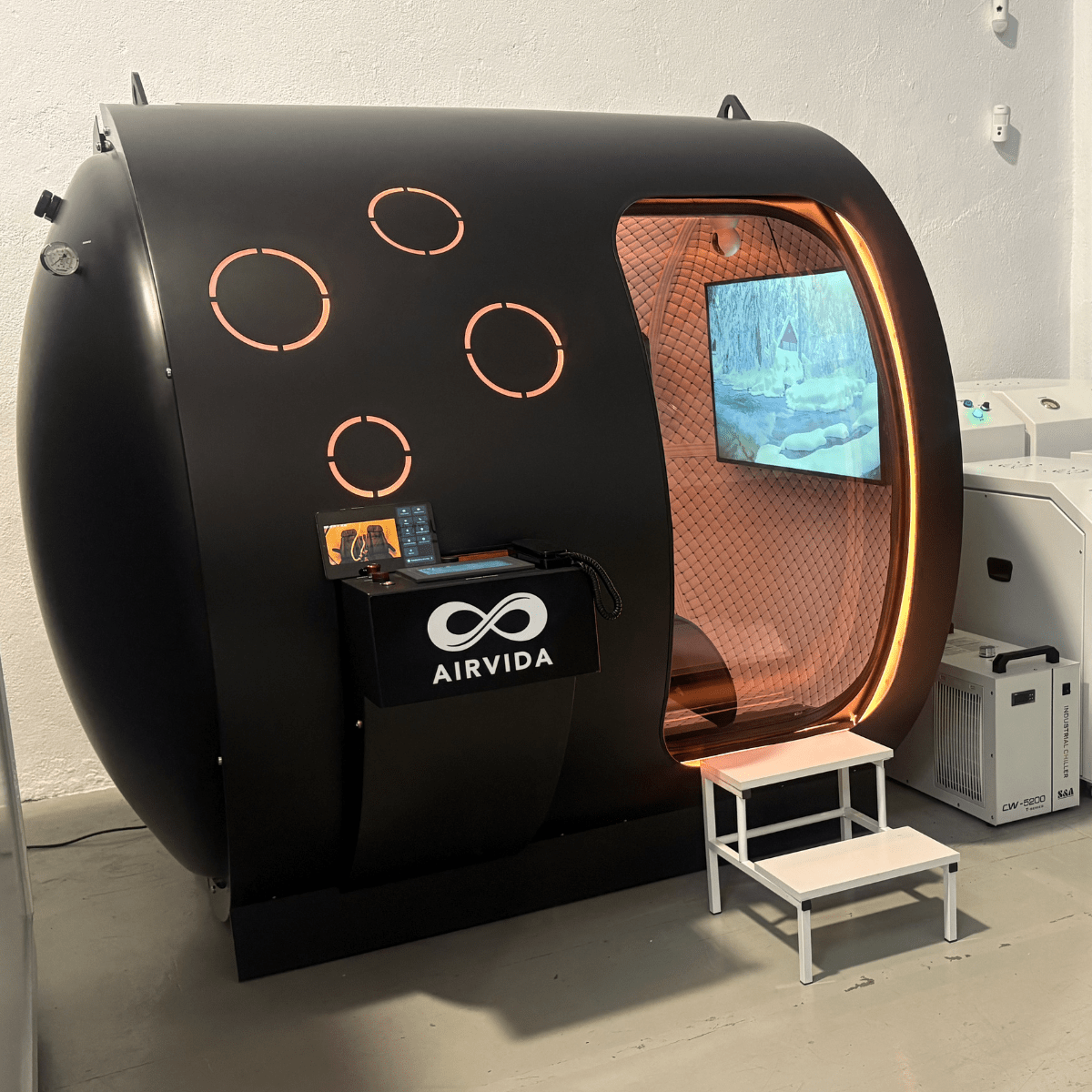

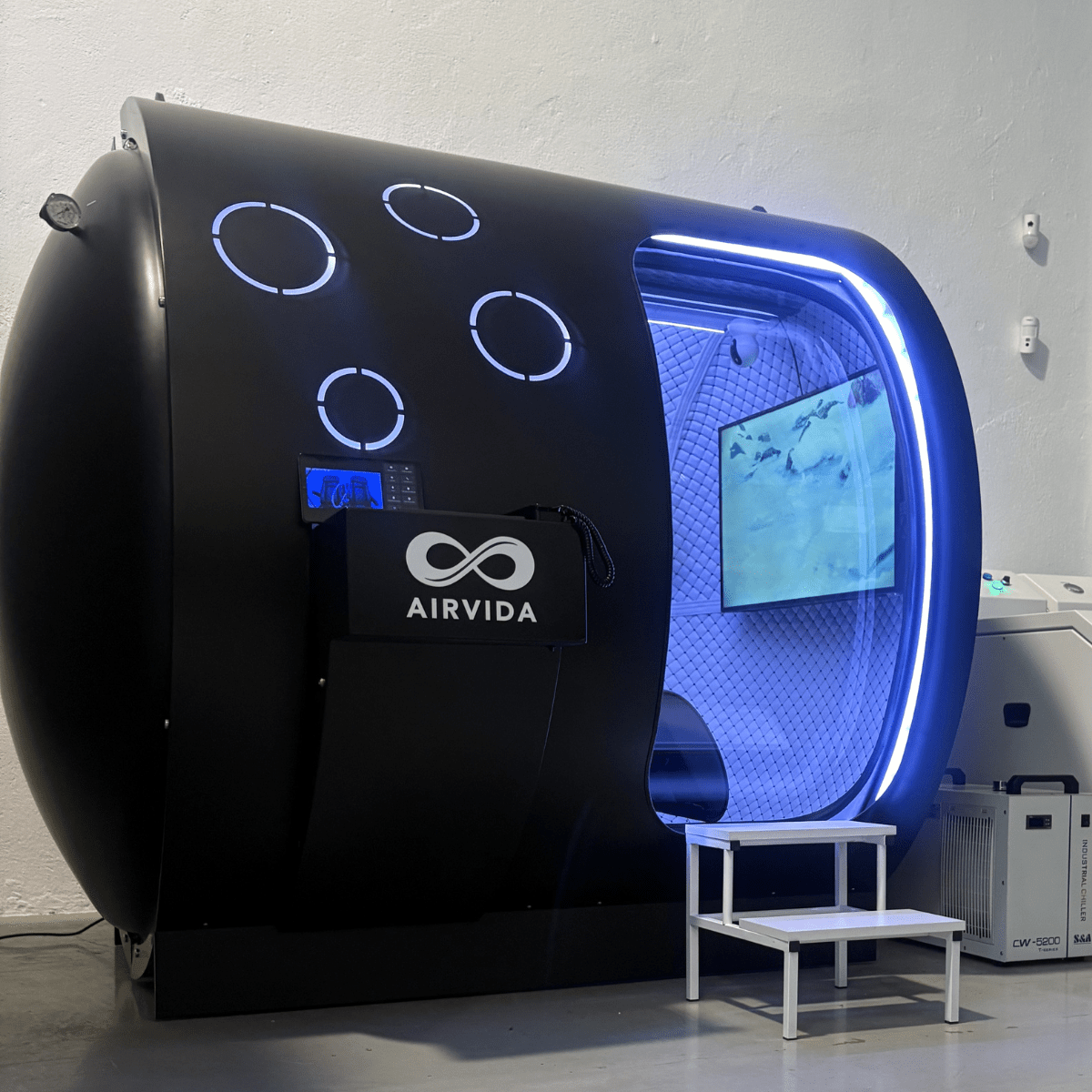

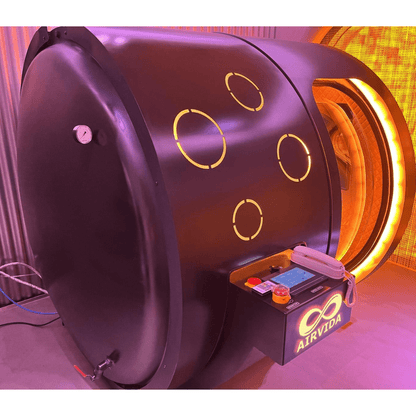

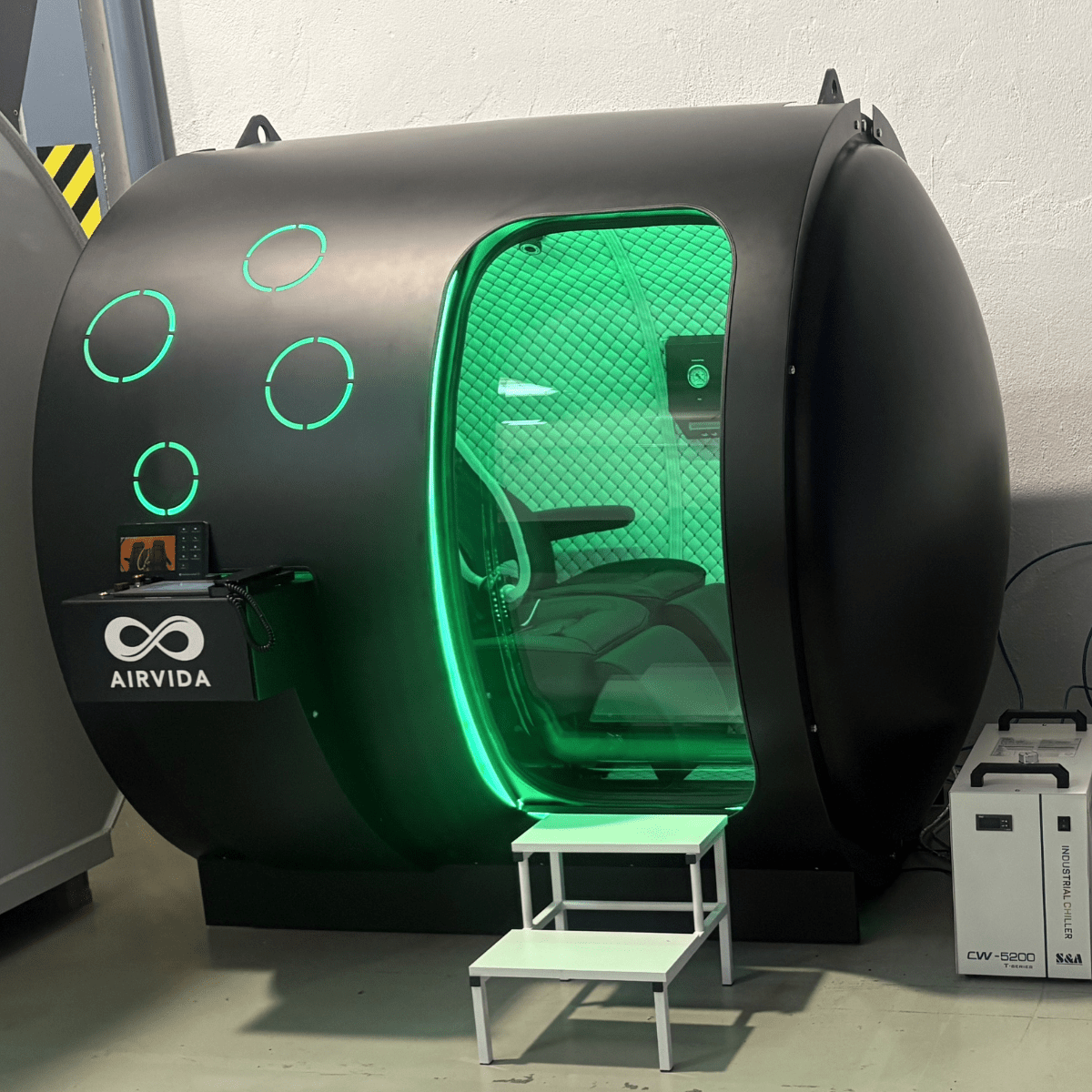

- Chamber Type: Rigid / hard-shell multiplace hyperbaric chamber
Dimensions & Weight
- External Footprint: ~87″ × 87″ × 77″ (Length × Width × Height)
- Weight: ~1,763 – 2,204 lbs (depending on configuration / rings)
Oxygen & Air Systems

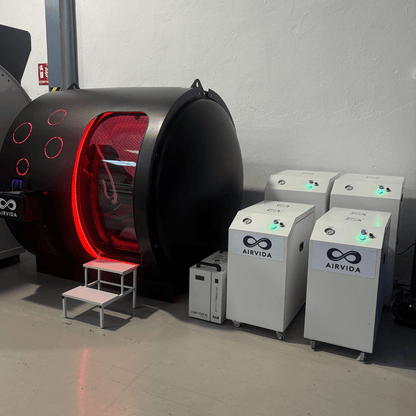

- Oxygen Delivery: ~1,200 LPM via concentrators (93% ±3% O₂ purity)

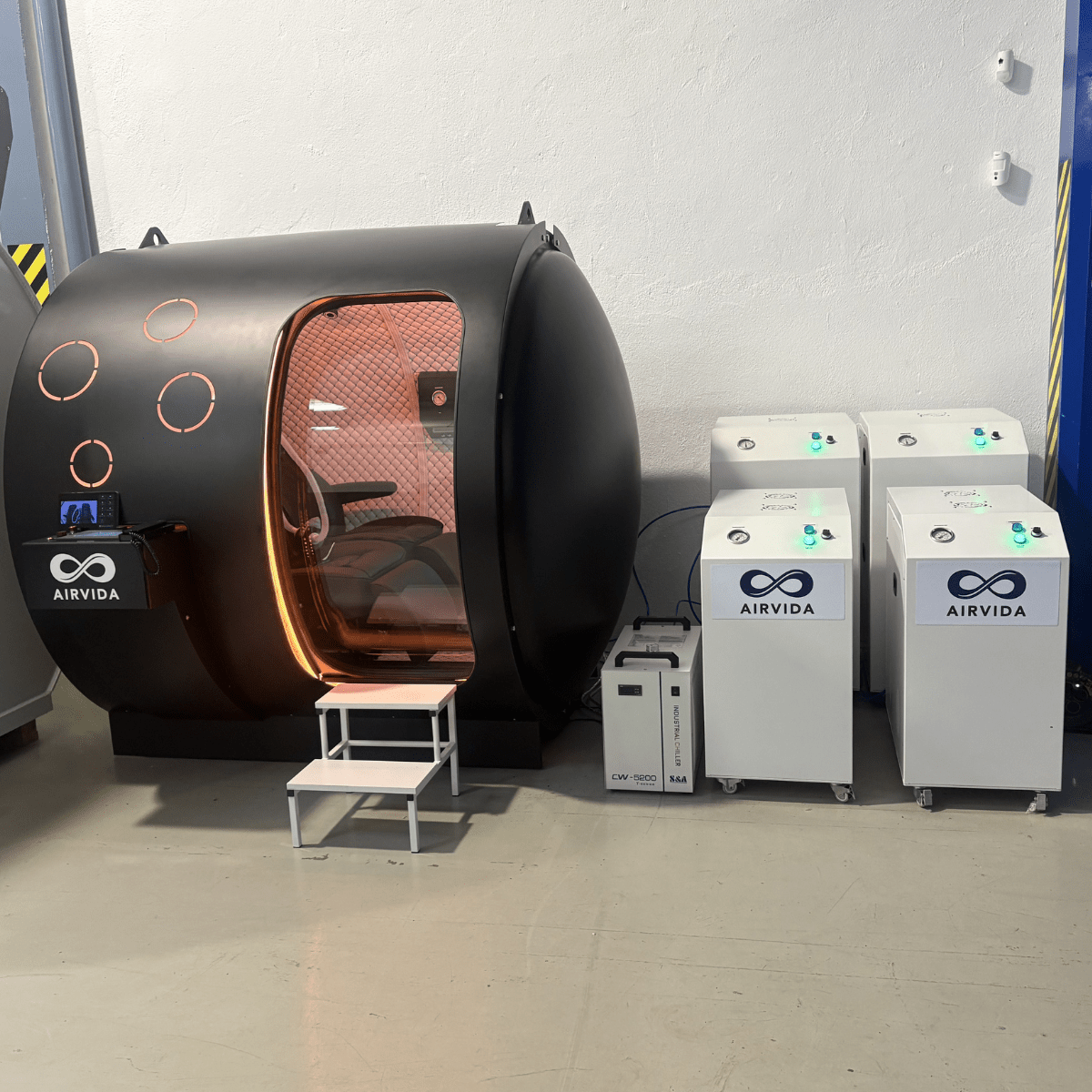

- Air Supply: Dual air compressors for redundancy

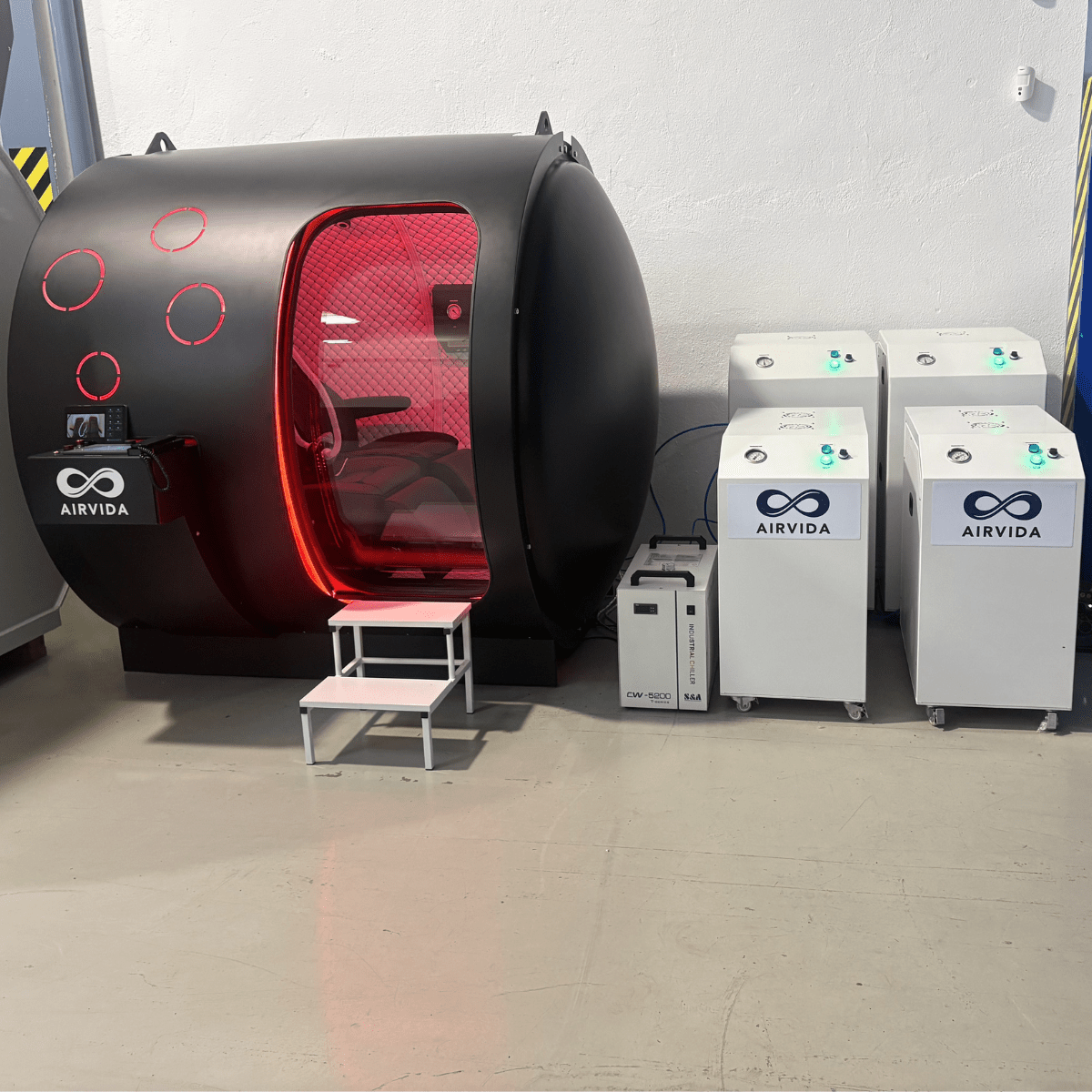

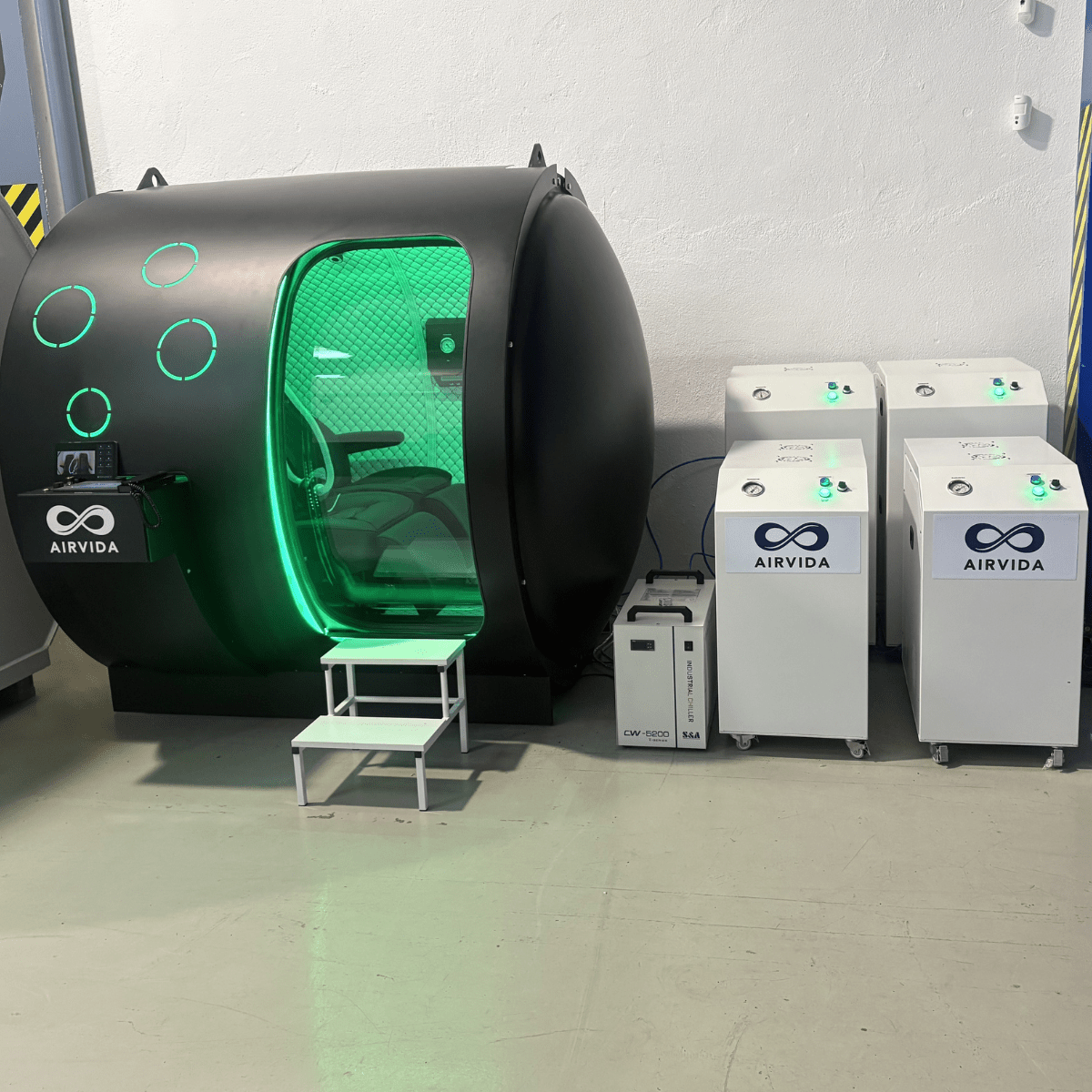

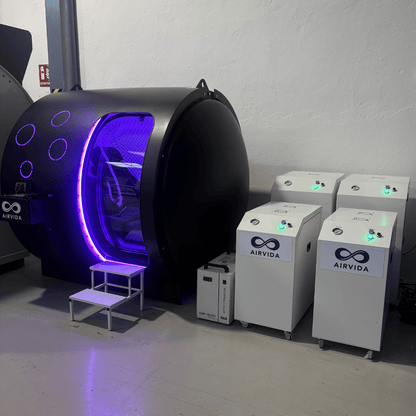

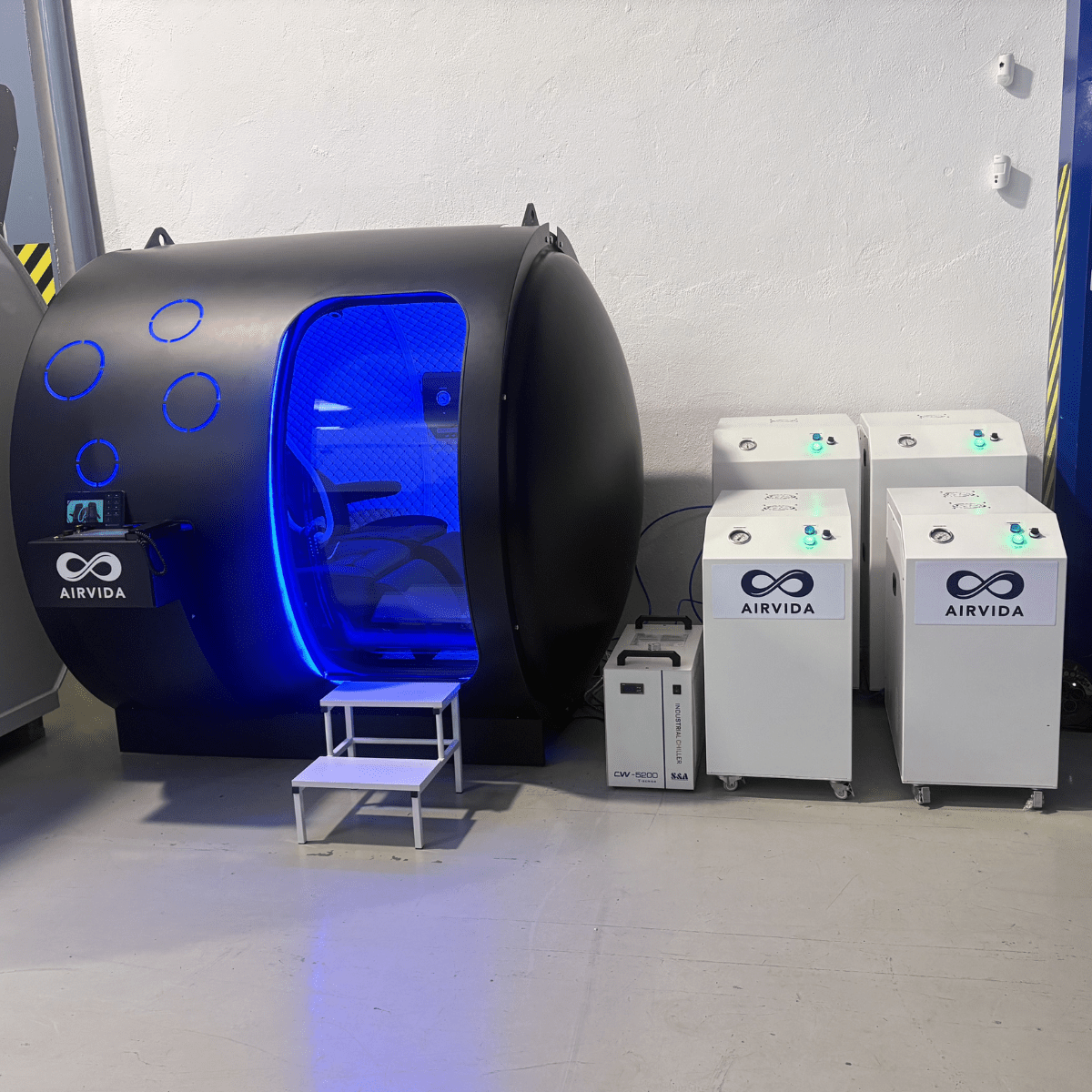

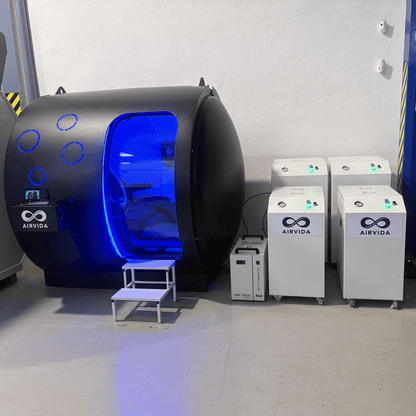

- Redundancy: Dual oxygen concentrators, reserve tanks, CO₂/O₂ sensors, emergency stop controls
Controls & Features

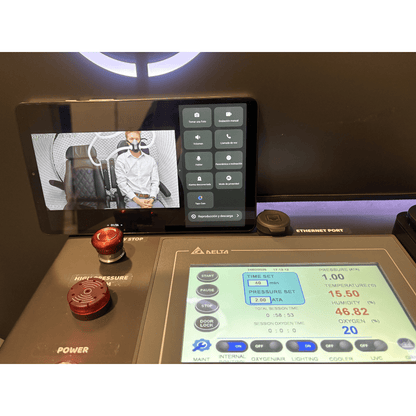

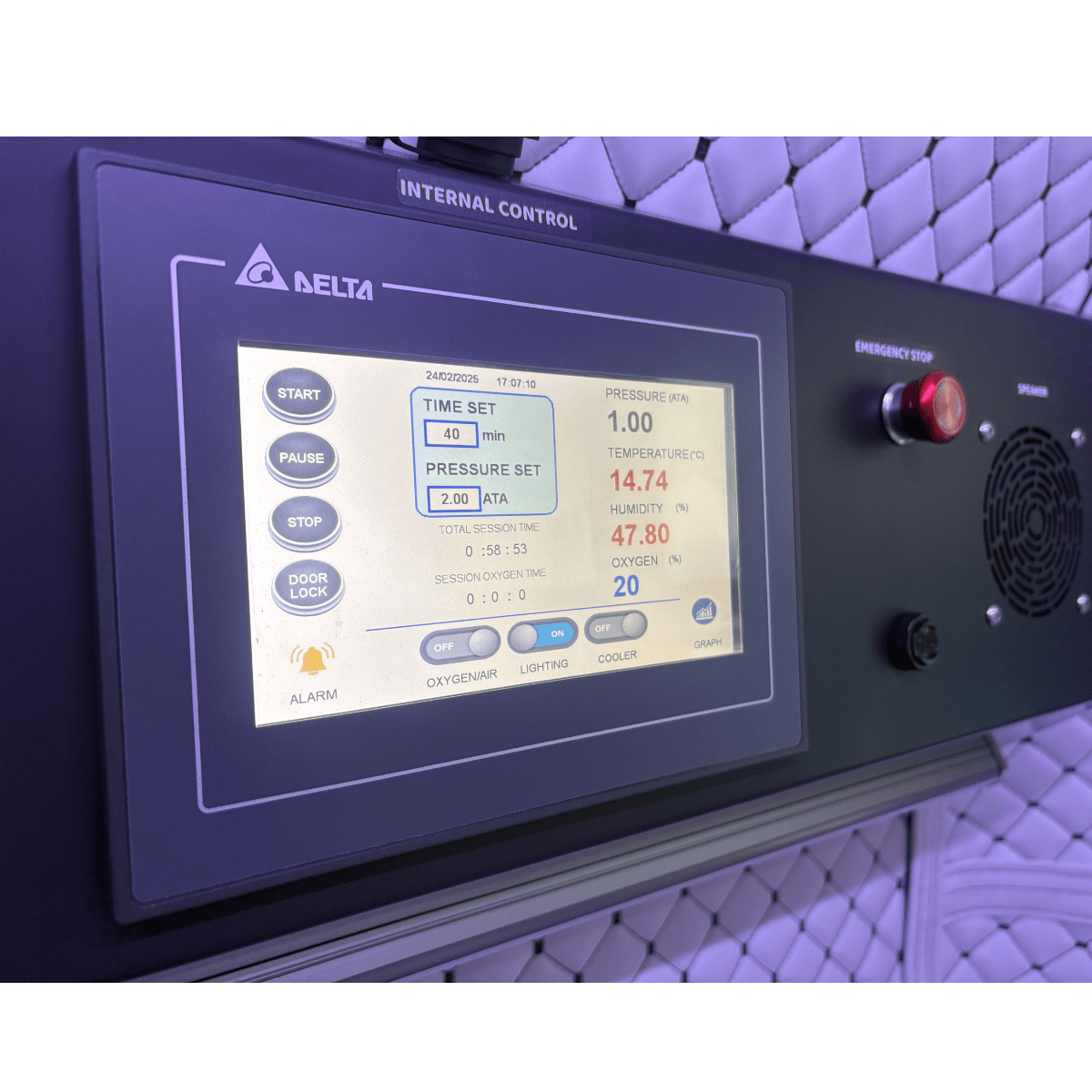

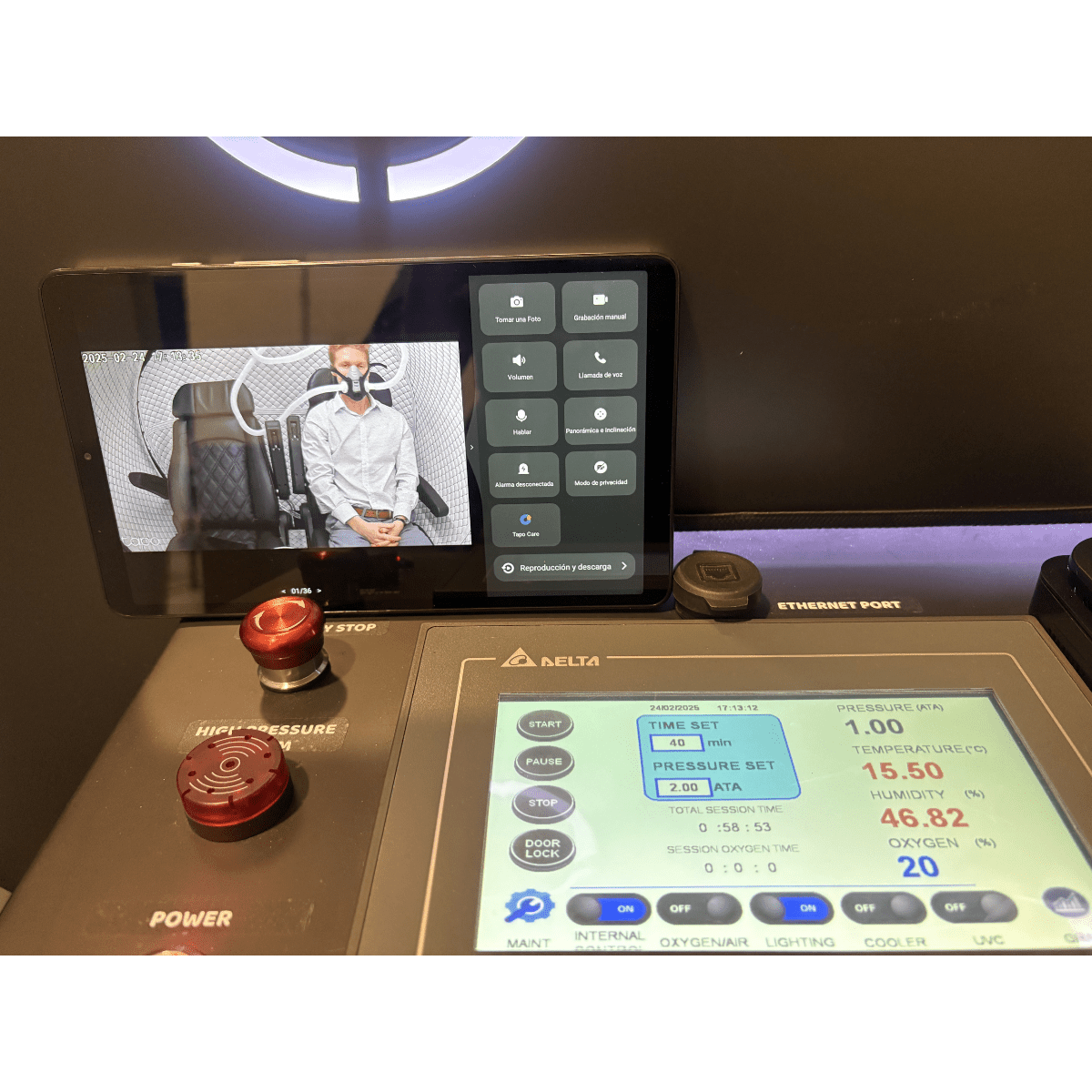

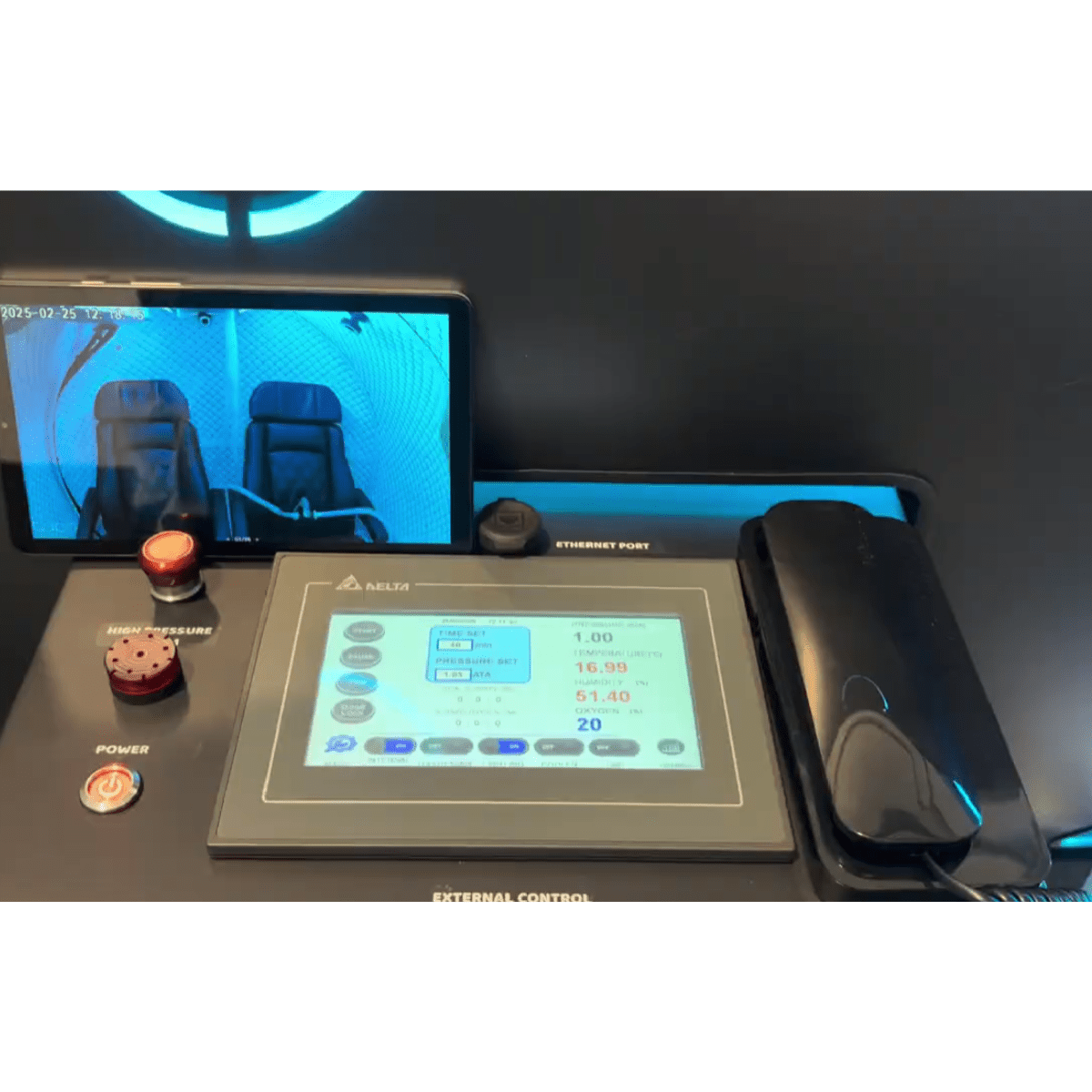

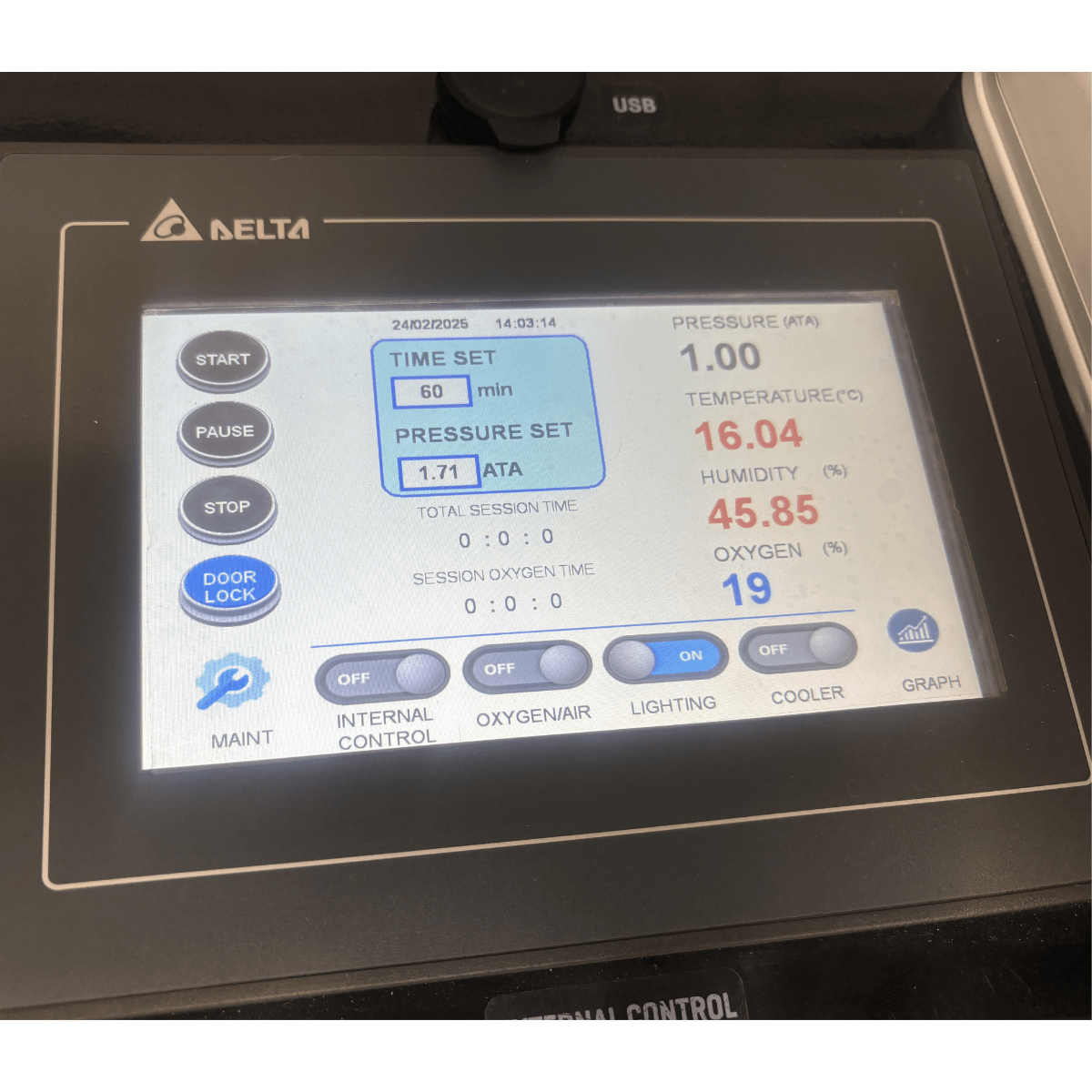

- Pressure Control: Digital interface with fine adjustment (0.01 ATA steps)

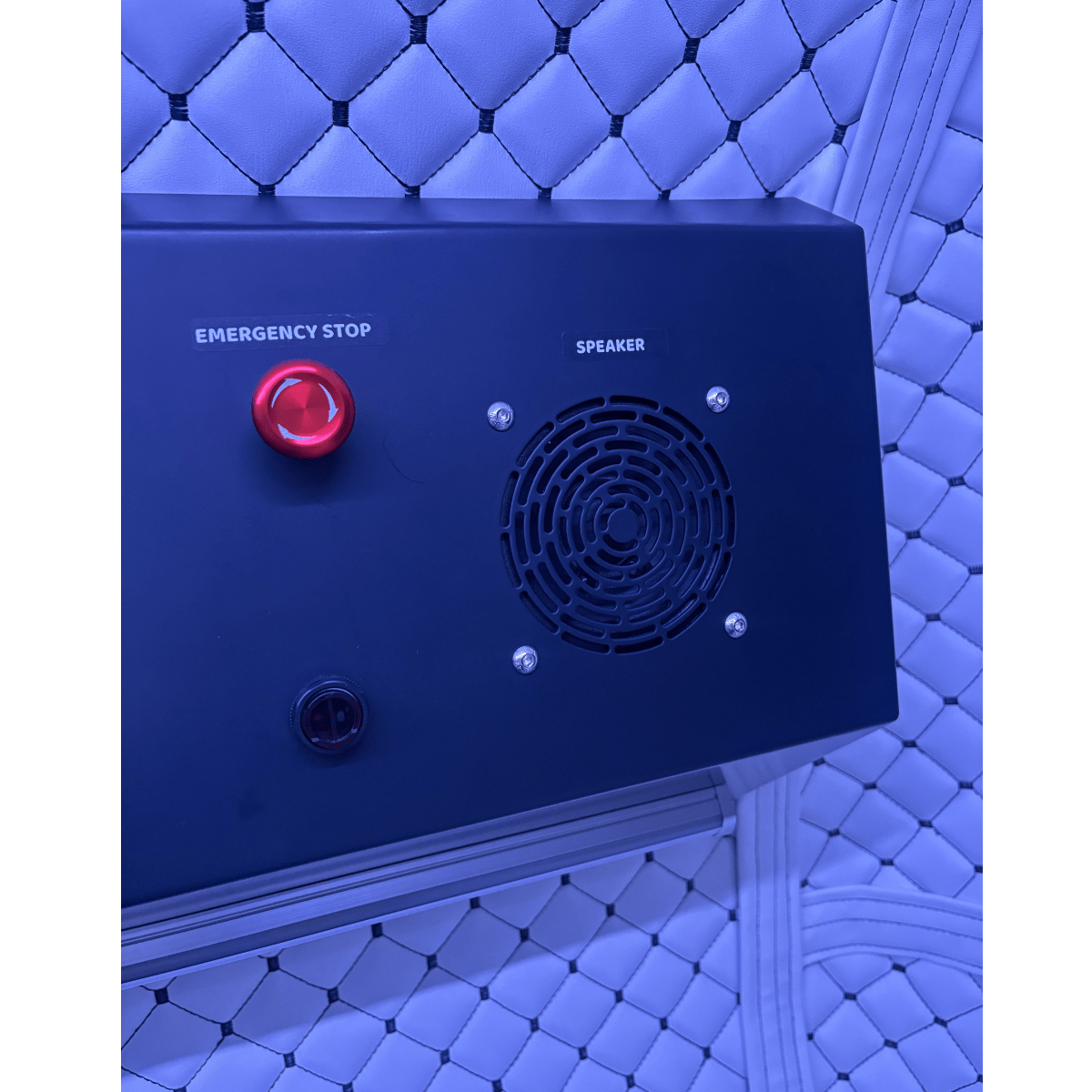

- Safety & Monitoring: Built-in CO₂ / O₂ sensors, emergency stops, safety valves

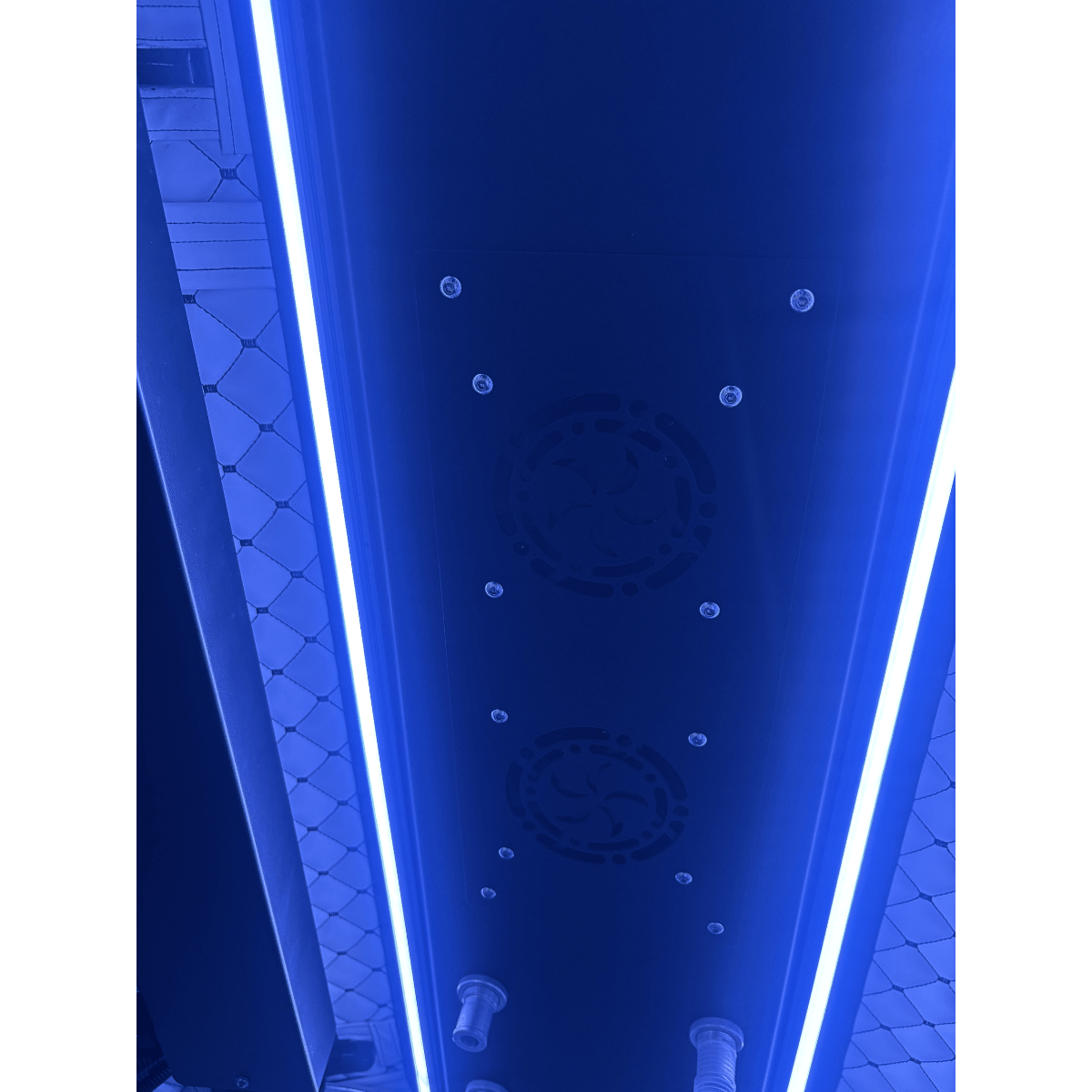

- Cooling & Climate: Integrated cooling / dehumidification systems

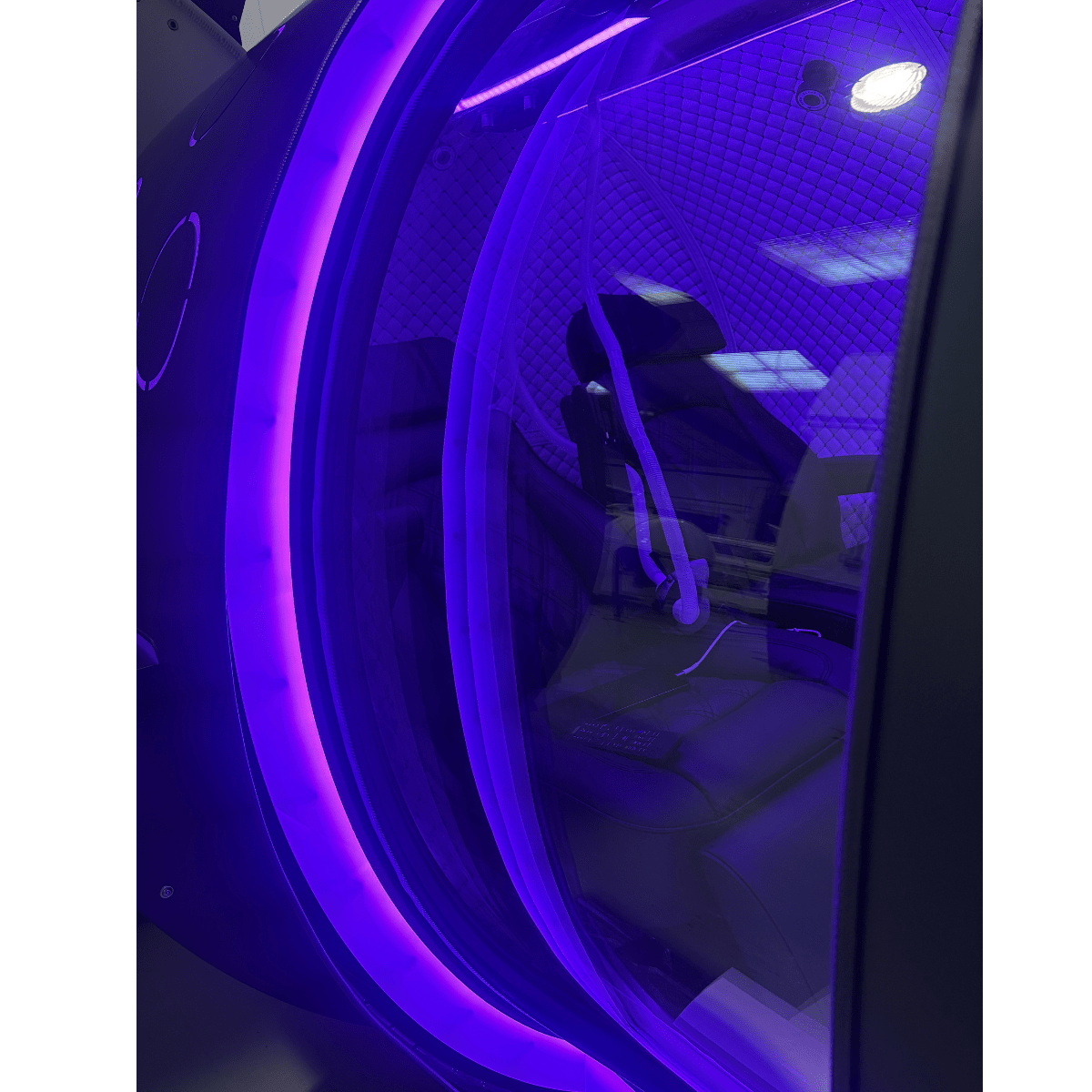

- Windows & Access: Transparent view ports for supervision

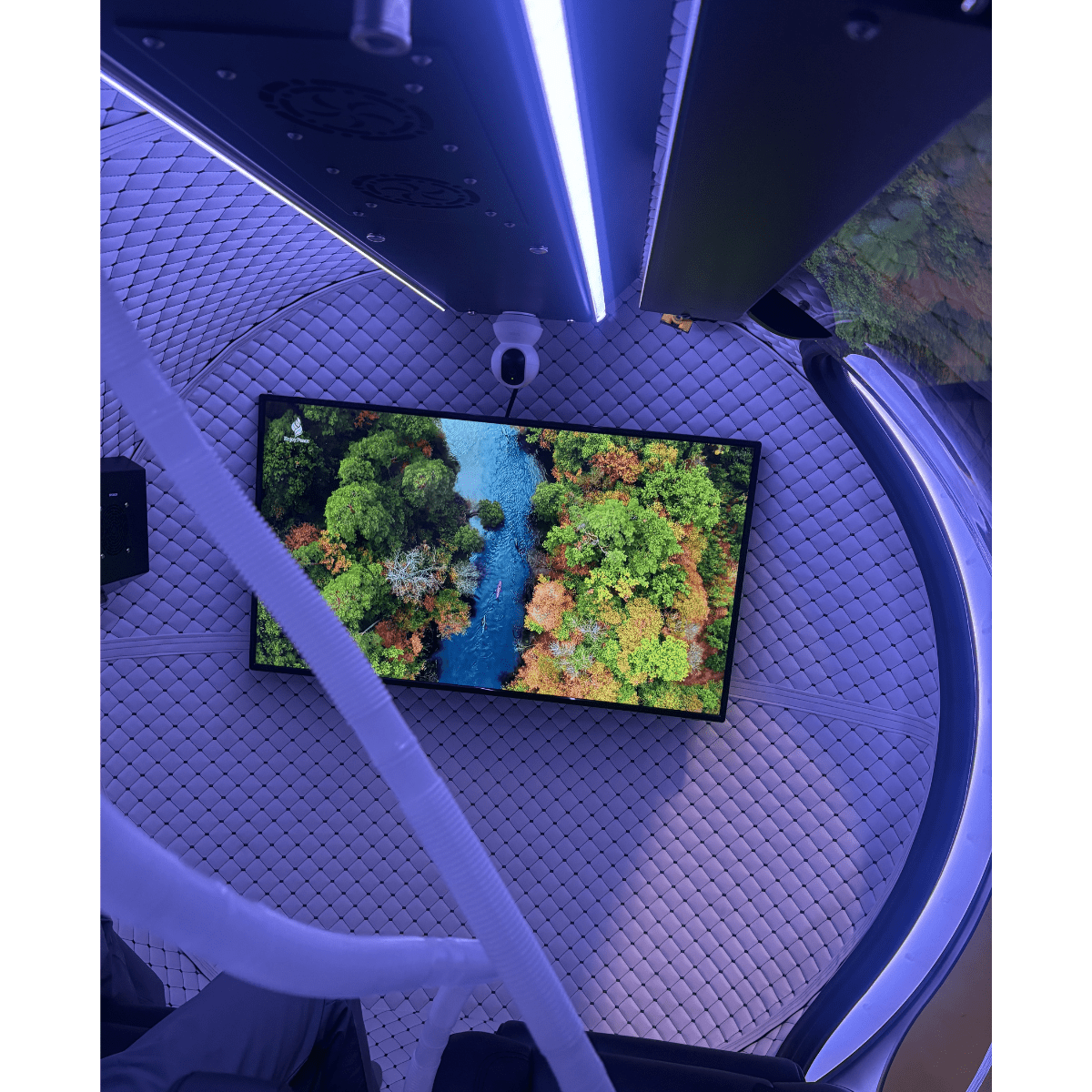

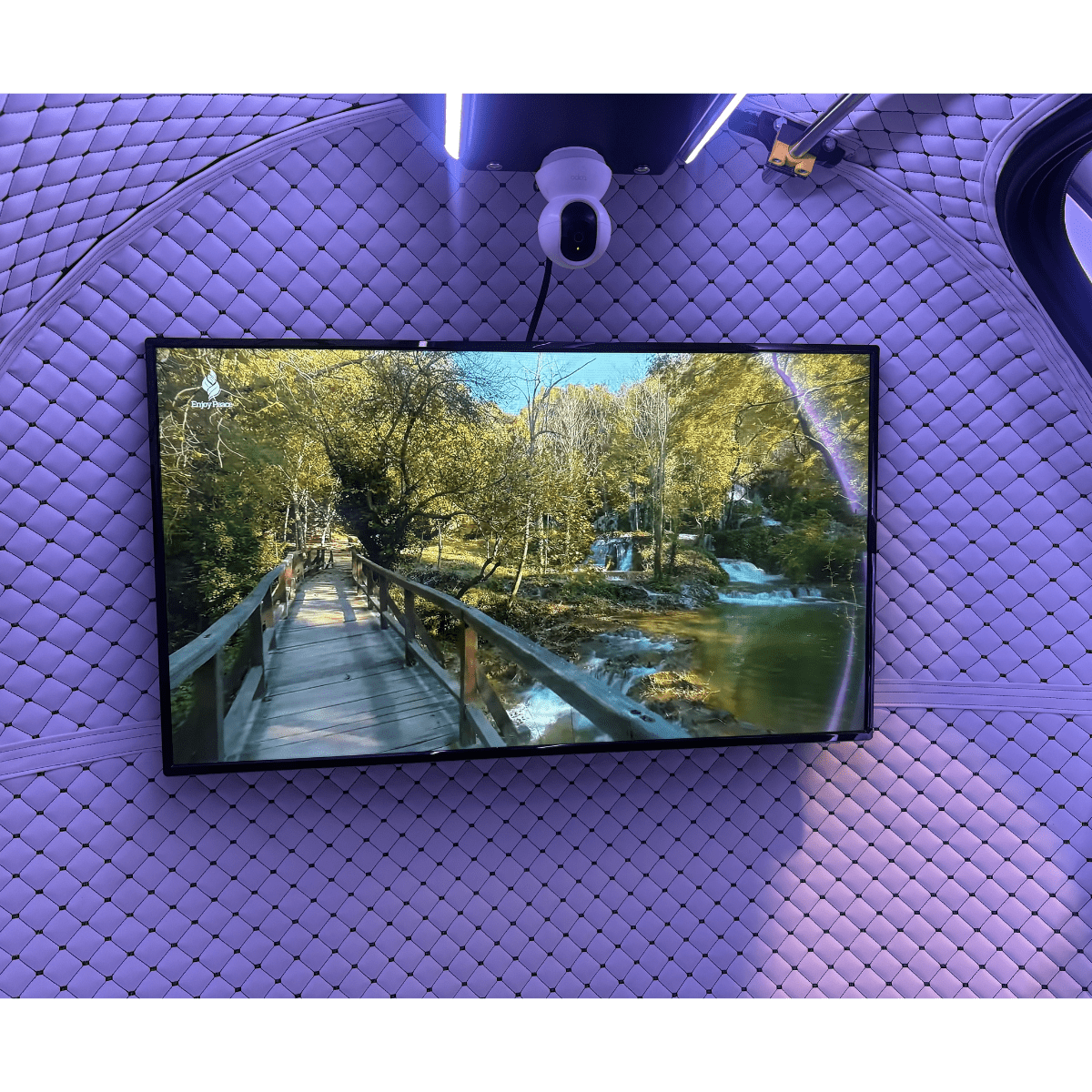

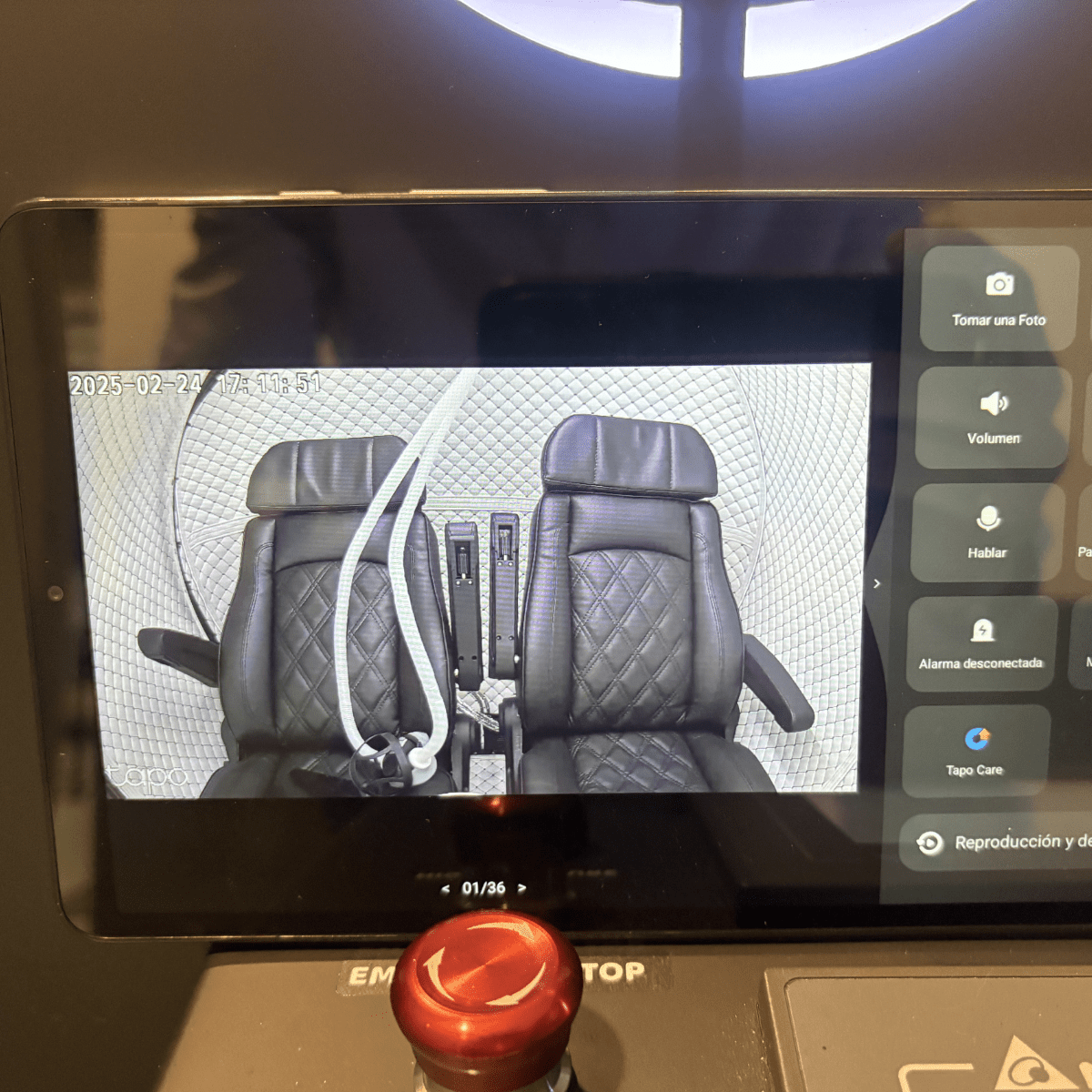

- Communication: Internal / external displays for O₂ purity, temperature, humidity
Power & Utilities
- Power Input: Standard AC (100–240 V nominal) — supports global compatibility
- Utility Requirements: Dedicated circuit recommended for stable operation
- Ventilation: Adequate ventilation and cooling required for compressor / system heat
Installation & Modularity
- Modular Design: Chamber sections can be disassembled or passed through standard doorways for installation
- Expandable Rings: Add-on modules allow capacity scaling from 2 → 4–6 users
- On-Site Setup: Professional calibration, installation, and training included
Certifications & Safety
- Safety Standards: Includes CO₂ / O₂ monitoring, emergency stops, safety valves
- Warranty & Support: Multi-year warranty and technical support included
- Compliance: Built to comply with international gas and pressure safety regulations
