Summit to Sea- Shallow Dive Hyperbaric Chamber

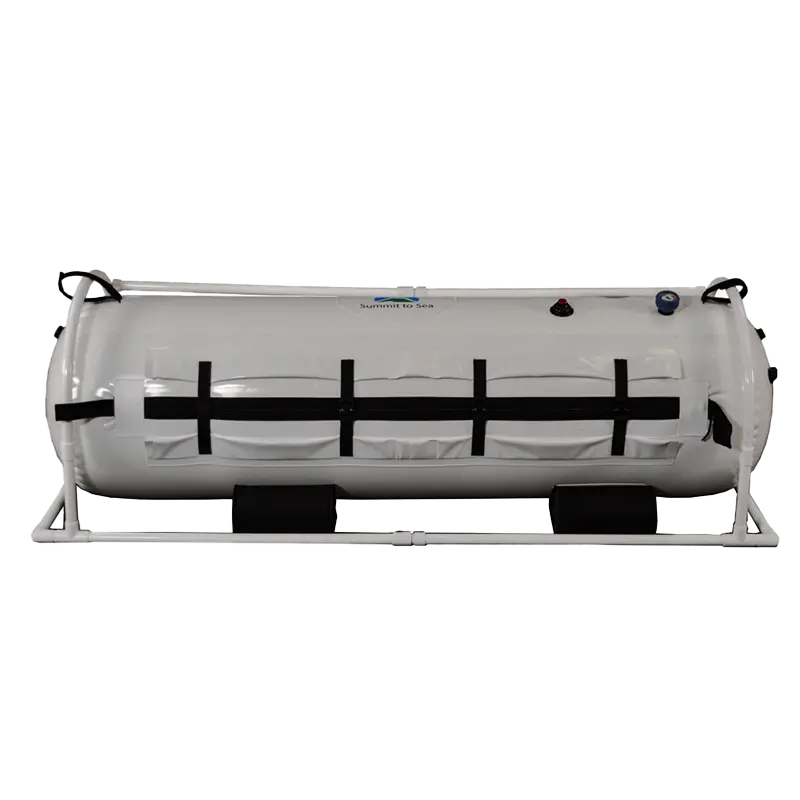

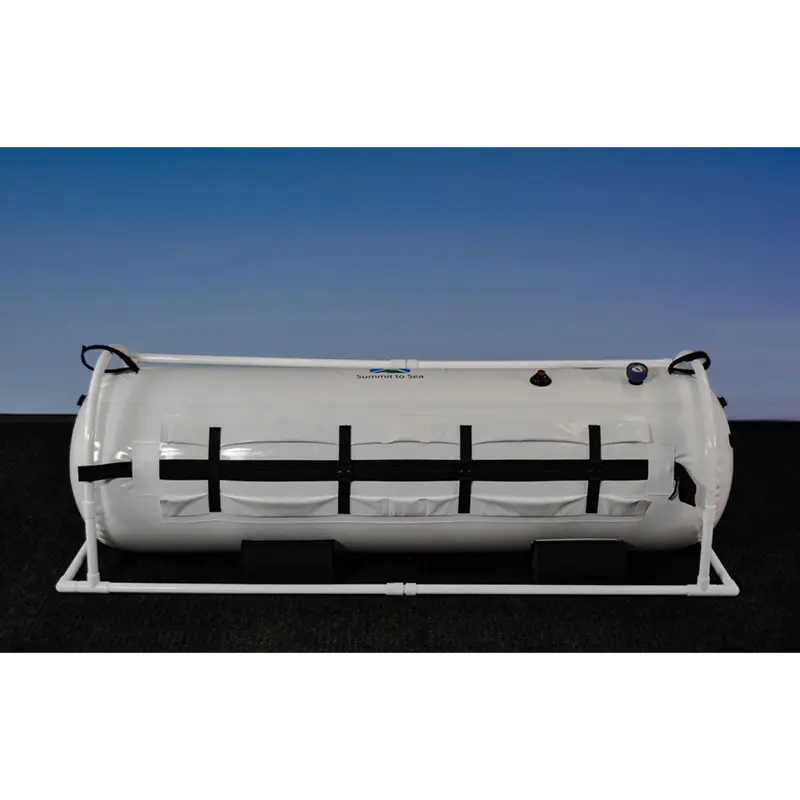

The SHALLOW DIVE by Summit to Sea is a horizontally oriented, inflatable hyperbaric chamber designed for personal or clinical use. As a Class II Medical Device, it is cleared by the FDA and requires a prescription for purchase and operation. This model provides a more compact, shallower profile while maintaining Summit to Sea's commitment to innovative and safe hyperbaric experiences. It features a robust inflatable body, an external support frame, stabilizer cradles, and multiple redundant safety systems, including a dual compressor system, multiple pressure relief valves, and a comprehensive zipper system with buckles.

Benefits and Key Features
High Safety Standards: Incorporates four key safety features including a dual compressor system, multiple (dual primary + one backup) pressure relief valves, a zipper stress relief system with buckles, and a failed circuit alarm.
User-Friendly Design: Clear setup and operational instructions (manual and thumb drive video). Features like dual-sided zipper pulls and manual deflation valve enhance ease of use for both assisted and individual operation.
Comfort: Horizontal design allows users to lie down. Includes an internal foam mat. Ultra-quiet compressors contribute to a restful experience.
Reliable & Secure Sealing: Patented dual zipper system, reinforced by buckles, ensures an airtight environment.
Durable and Well-Constructed: Utilizes quality materials for components like windows and zippers. The frame is designed to be lightweight yet highly durable.
FDA Cleared: As a Class II Medical Device, it meets FDA specifications (cleared for Acute High Altitude Sickness), requiring a physician's prescription.
Efficient Air System: Dual compressors provide continuous fresh air, preventing CO2 buildup and ensuring redundancy.

Parts or Product Contents
SHALLOW DIVE Chamber (the inflatable unit)
Carry Bag
Two Cradles (stabilizer supports)
Frame (PVC components: end pieces, arches, floor poles, top pole with end caps)
2 Compressors (air supply units)
In the "OPEN ME FIRST BOX":
Silicone and Zipper cleaner (lubricant)
Auxiliary Valve
Thumb drive with set up instructions
Failed Circuit Alarm with battery included
Screwdriver (for frame assembly)
Foam mat
Compressor Hoses (implied, for connecting compressors to fill valves)

Technical Specifications
Product Name: SHALLOW DIVE
Type: Horizontal inflatable hyperbaric chamber
Operating Pressure: Factory calibrated to 1.3 ATA (Atmospheres Absolutas) or 4.4 PSI.
Safety Features (4 key features highlighted):
Dual Compressor System: Two independent compressor systems attach to the chamber, providing redundancy and continuous fresh air supply. All compressors must run during treatment. (Compressor model: Oil-less 120 with a flow rate of 120 liters per minute).
Pressure Relief Valves:
Two (2) primary air relief valves with blue circles (MRM High-Flow PRV). Located at each end of the chamber. Factory calibrated to equalize pressure at 1.3 ATA / 4.4 PSI.
One (1) safety backup pressure relief valve with a yellow circle (MRM High-Flow PRV), set to open at a slightly higher pressure than the blue valves.
Zipper Stress Relief System (Buckles): Belts with buckles are used along the zipper line to reduce stress on the zippers and ensure a secure seal, extending their life. All belts must be buckled during operation, before zipping.
Failed Circuit Alarm: Alerts the user with a loud alarm in case of a power outage. Requires a 9V battery (included).
Zipper System:
Unique two-zipper combination: one internal airtight zipper and one external mechanical zipper.
Internal zipper has a dock at each end for an airtight seal; lubricant can be applied to the dock.
External zipper is secured by pulling the zipper string through a white safety strap.
Air Supply & Connection:
Two (2) compressors.
Fill Valves (x2): Located on one end of the chamber for connecting compressor hoses (quick connect with O-ring, silicone lubricant recommended).
Monitoring & Ports:
Color-Coded Gauge (External): Needle indicates internal pressure; blue area for full operational pressure (1.3 ATA). Accurate to +/- 5%.
(Internal Gauge implied by other similar models, though not explicitly detailed as a separate component in the "Components" section for Shallow Dive).
Red Deflation Valve (Red Knob): Operable from inside or out, used to depressurize the chamber. Turns in either direction to release air and control deflation speed. Can also be used during pressurization for ear comfort. Must be in the closed position for inflation.
Auxiliary Port: Located next to the window, for attaching the small auxiliary valve.
Additional Ports (x2): One at each end of the chamber for additional accessories.
Frame & Support:
Lightweight, durable, easily assembled/disassembled white PVC external frame. Consists of end pieces, arches, floor poles, and a top pole with end caps (10 pieces total, forming 2 arches and 3 cross-members).
Chamber attaches to the frame via Velcro loops.
Stabilizing Cradles (x2): Connect to Velcro patches on the bottom of the chamber to prevent movement.
Interior & Construction:
Foam Mat: Included for internal comfort.
Windows: Five-layer construction (one firm acrylic layer between four vinyl layers) for a long-lasting, permanent seal.
Portability: Includes a carry bag.
