Technical Specifications

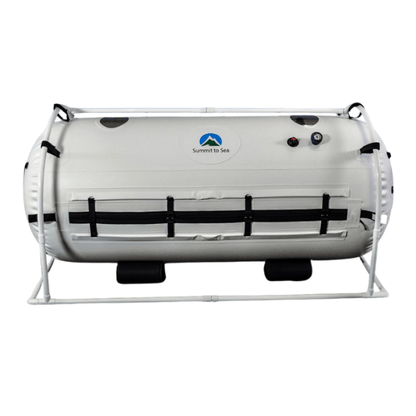

Product Name: THE GRAND DIVE
Type: Inflatable hyperbaric chamber
Operating Pressure: Factory set to 1.3 ATA (Atmospheres Absolutas) or 4.4 PSI.
Safety Systems:
Dual Compressor System: Two separate compressor systems connect to the chamber, providing redundancy. If one fails, fresh air continues to circulate.
Pressure Relief Valves (Blue Circles, x2): One located at each end of the chamber. Factory calibrated to equalize pressure at 1.3 ATA / 4.4 PSI.
Safety Backup Pressure Relief Valve (Yellow Circle, x1): Set to open at a slightly higher pressure than the blue valves.
Failed Circuit Alarm: Alerts the user to a power outage. Requires a 9V battery and connects to a power strip where compressors are plugged in.
Zipper System:
Internal airtight zipper.
External mechanical zipper with a white safety strap.
Buckles along the zipper line to reduce stress and ensure secure closure (buckle belts before zipping).
Valves & Ports:
Fill Valves (x2): Located on the chamber (likely back) for connecting compressor hoses (quick connect).
Red Deflation Valve (x1): Operable from inside or out, turns in either direction to release air and control deflation speed. Can be used to customize pressurization speed for ear comfort.
Auxiliary Port: Located to the left of the fill valves, for attaching the auxiliary valve (included in the "Open Me First" packet).
Monitoring:
External Color-Coded Gauge: Needle indicates pressure (blue area for full pressure). Accurate to +/- 5%.
Internal Gauge: Operates similarly to the external gauge, but the needle moves counter-clockwise.
Frame & Support:
External PVC frame consisting of 10 pieces: 2 end pieces, 2 arches, and 6 small side poles. Assembled using a provided screwdriver.
Chamber connects to the frame via Velcro loops (zipper loop is not connected to the frame).
Cradles (Stabilizers): Attach to Velcro on the bottom of the chamber to prevent movement during treatment.
Accessories:
Foam Mat: For internal comfort.
Carry Bag: For storage and transport.
